6.3. Sensing for Autonomous Vehicles#

LIDAR, a sensor found in most autonomous cars, can be used to construct a 3D representation of the robot’s environment in real time.

Splash image with steampunk autonomous car

6.3.1. LIDAR#

LIDAR (LIght raDAR) is a technology that measures distance to an object by using laser light and the “Time of Flight” or ToF principle. There are several variants in use, and the simplest to explain is the direct ToF sensor, which sends out a short pulse and measures the elapsed time \(\Delta t\) for the light to bounce off an object and return to a detector collocated with the laser pulse emitter. If the object is situated at a distance \(d\) from the emitter-detector pair, we have

\[ \Delta t = \frac{2 d}{c} \]

where \(c\approx300,000km/s\) is the speed of light. For example, for an object at 15m, we have

\[ \Delta t \approx \frac{2 \times 0.015}{300,000} = 0.1\mu s \]

Assuming we can measure \(\Delta t\) accurately, we can then easily compute the distance:

\[ d= c\frac{\Delta t}{2} \]

In a scanning LIDAR, there is typically one detector, whereas in a flash LIDAR a single pulse is emitted in a wide field of view, and an array of detectors, akin to a CCD sensor, is used to detect the returning light pulses in multiple directions at once.

In practice, indirect time of flight sensors are more prevalent in robotics and autonomous driving applications than direct ToF sensors. There are multiple reasons for this: measuring elapsed times at the nano-second scale is difficult and expensive, and the amount of light energy that needs to be emitted for direct ToF can also be a problem from an eye-safety perspective. Indirect ToF is an attractive alternative, where the light is emitted with a waveform, e.g., a sine wave, and the returned light is correlated with the amplitude of the emitted light to calculate a phase shift. The elapsed time \(\Delta t\) and distance \(d\) can then be calculated from the phase shift.

Two common scanning LIDAR technologies are in use for robotics: 2D LIDAR, which consists of a single laser beam that is rotated around a fixed axis, and 3D LIDAR, which has multiple laser/detector pairs rotated at different inclinations. 2D LIDARs are also often deployed on aircraft to create highly detailed digital elevation maps, where the third dimension is provided by the aircraft’s forward motion. LIDAR altimeters are even deployed from satellites in orbit around Earth or other planets.

6.3.2. Ray Intersection#

Intersecting rays is as easy as computing a dot product.

To perform inference about the environment with LIDAR, we have to model how LIDAR beams interact with it, which in the case of polygonal objects comes down to line-line or line-plane intersections.

We examine the 2D line-line intersection case first. Assume we have a line in 2D with equation \(\hat{n} \cdot p = d\), where \(\hat{n}\) is a normal vector and \(d>0\) is the distance of the line to the origin. The hat notation signifies that the normal vector \(\hat{n}\) is normalized to length 1. Then if we have a ray of points \(p = \hat{r} s\) where \(\hat{r}\) is the ray direction and \(s>0\) is a scalar, we can find the intersection by plugging the ray equation into the line equation

\[ \hat{n} \cdot (\hat{r} s) = d, \]

where \(a \cdot b \doteq a^T b = b^T a\) is the standard vector dot product. We find the range \(s\) to the object as:

\[ s = \frac{d}{\hat{n} \cdot \hat{r}}. \]

We can ensure that \(s>0\) and avoid a division by zero by checking the dot product before doing the division:

\[ \hat{n} \cdot \hat{r} > 0 \]

The following code implements this:

def intersect(n, d, r):
    """Intersect line/plane (n,d) with ray given by direction r."""
    cos = np.dot(n,r)
    return d / cos if cos>0 else float('nan')

assert intersect(n=gtsam.Point2(1,0), d=5, r=gtsam.Point2(1,0)) == 5

The story above generalizes completely to 3D, where with \(\hat{n}\in\mathbb{R}^3\) and \(p\in\mathbb{R}^3\). In this case, the equation \(\hat{n} \cdot p = d\) defines a plane in 3D:

assert intersect(n=gtsam.Point3(1,0,0), d=5, r=gtsam.Point3(1,0,0)) == 5

6.3.3. Simulating a 2D LIDAR#

Computing line intersections is the main computation when simulating 2D LIDAR.

We now put the above to work to simulate a 2D LIDAR sensor situated at the origin. The SICK Tim1xx is a relatively low-cost 2D LIDAR sensor, which has a field of view of 200 degrees and a resolution of one beam per degree. Hence, we expect to simulate 200 measurements.

In our simple simulation code below, we create an environment from infinite lines. A more powerful simulator would allow for line segments, but infinite lines are enough to illustrate the principle. We create a corridor-like environment with three sides:

north = gtsam.Point2(0,1), 2.5
east = gtsam.Point2(1,0), 8
south = gtsam.Point2(0,-1), 2.5

Then we simply create 200 rays, ranging from -100 degrees to 100 degrees, with 0 facing due east:

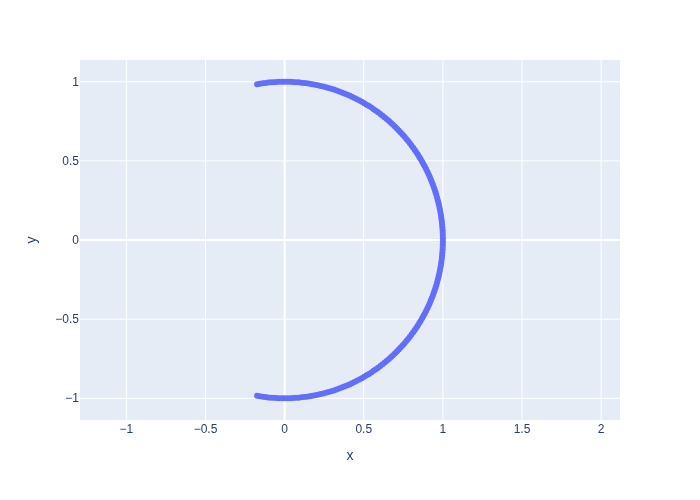

#| caption: 200 "LIDAR" rays at different angles
#| label: fig:lidar_rays_200
angles = np.linspace(-100, 100, 200)
rays = np.array([gtsam.Rot2(math.radians(angle)).matrix()[0,:] for angle in angles])
fig = px.scatter(x=rays[:,0],y=rays[:,1])
fig.update_yaxes(scaleanchor = "x", scaleratio = 1); fig.show()
_images/80f417107f0ad64add49a17f364d205b5308d5f3fa94ae9691e03791cae87a85.png

Finally, we do the intersection:

scan = []
for r in rays:
    ranges = [intersect(n,d,r) for n, d in [north, east, south]]
    _range = np.nanmin(ranges)
    intersection = _range * r
    scan.append(intersection)

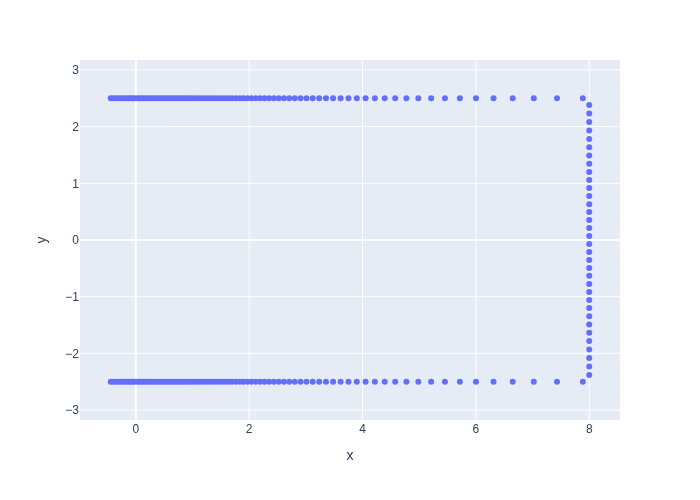

#| caption: A simulated scan by intersecting 200 rays with the environment.
#| label: fig:lidar_scan_200
scan_x, scan_y = zip(*scan)
fig = px.scatter(x=scan_x, y=scan_y)
fig.update_yaxes(scaleanchor = "x", scaleratio = 1); fig.show()
_images/14d1d4e95ac245212fe0bc7db5435228c9f9ad8b5a72733eb62b0163bf38c295.png

As you can see, the resulting scan of this corridor-like environment does not produce a uniform sampling on the walls. Because the rays are distributed uniformly in angle space, they graze the walls at increasingly shallow angles, and the distance between successive intersection points increases. Of course, this depends on the angle that the wall makes with the rays: the end of the corridor is far away and hence is sampled fairly uniformly. This is a typical pattern when working with LIDAR scanners.

6.3.4. Geometry of a Moving LIDAR#

Above we assumed that the ray is situated at the world origin, but we can also generalize to the case where the rays are defined in a body coordinate frame \((R^w_b,t^w_b)\). In this case, it is convenient to transform the plane to the body frame. We can do this by expressing a point \(p^w\) in world coordinates as a function of a point in body coordinates: \(p^w = R^w_b p^b + t^w_b\) and plugging that into the plane equation:

\[\begin{split} \begin{aligned} \hat{n}^w \cdot p^w &= d^w \\ \hat{n}^w \cdot \{ R^w_b p^b + t^w_b \} &= d^w \\ (R^w_b)^T \hat{n}^w \cdot p^b &= d^w - \hat{n}^w \cdot t^w_b. \end{aligned} \end{split}\]

Hence, we obtain a new plane equation in the body frame as

\[ \hat{n}^b \cdot p^b = d^b \]

with transformed plane parameters \(\hat{n}^b \doteq (R^w_b)^T \hat{n}^w\) and \(d^b \doteq d^w - \hat{n}^w \cdot t^w_b\).

We can use a gtsam.Pose2 or gtsam.Pose3 object to specify the body frame, respectively in 2D or 3D, and then use it to transform plane coordinates:

def transform_to(n, d, wTb):
    """Transform line/plane (n,d) to body coordinate frame"""
    wRb = wTb.rotation()
    wtb = wTb.translation()
    return wRb.matrix().T @ n, d - np.dot(n, wtb)

We can do this for lines in 2D

wTb = gtsam.Pose2(r=gtsam.Rot2(math.radians(20)), t=[2,1])
print(transform_to(gtsam.Point2(1,0), 5, wTb))
(array([ 0.93969262, -0.34202014]), 3.0)

and for planes in 3D:

wTb3 = gtsam.Pose3(r=gtsam.Rot3.Yaw(math.radians(45)), t=[1,2,3])
print(transform_to(gtsam.Point3(1,0,0), 5, wTb3))
(array([ 0.70710678, -0.70710678,  0.        ]), 4.0)

With this new functionality we can transform the world model and predict what the scan will look like, in body coordinates.

scan2 = []
transformed = [transform_to(n, d, wTb) for n, d in [north, east, south]]
for r in rays:
    ranges = [intersect(n,d,r) for n, d in transformed]
    _range = np.nanmin(ranges)
    intersection = _range * r
    scan2.append(intersection)

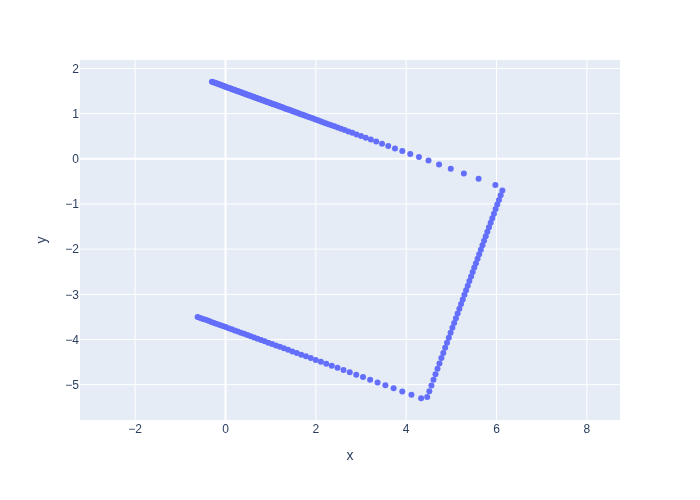

#| caption: Simulated scan from a different location in the same environment.
#| label: fig:lidar_scan_200_2
scan2_x, scan2_y = zip(*scan2)
fig = px.scatter(x=scan2_x, y=scan2_y)
fig.update_yaxes(scaleanchor = "x", scaleratio = 1); fig.show()
_images/e37f71b0ad48baea731038fe759ceeb6db4cc0a37724f69ec2f70235e914ecb1.png

As you can see above, when the robot rotates 20 degrees counter-clockwise, the resulting scan in body coordinates seems to be rotated 20 degrees in the opposite direction. This makes sense! The forward direction for the robot is along the horizontal X-axis, and as you can see in the scan, the robot seems to be “looking” at the correct (upper-right) corner of our little hallway example. This perhaps counter-intuitive behavior is something to always keep in mind when looking at animations of LIDAR scans.

6.3.5. Real LIDAR Scans#

From theory to practice.

3D LIDAR sensors have been used in many autonomous driving efforts, e.g., by Waymo, Cruise, Argo, etc. Below we explore some real scans from the Argoverse 2 Lidar Dataset.

First, let us look at a single scan, which was acquired using a Velodyne VLP-32C LIDAR sensor. The 32 in the model name reflects the fact that, for this particular sensor, there are 32 separate laser beams at different inclinations, that spin around for a full 360 degree field of view. In this case, the inclination angles are uniformly sampled between -25 and +15 degrees with respect to horizontal, but of course this depends on the application/sensor model.

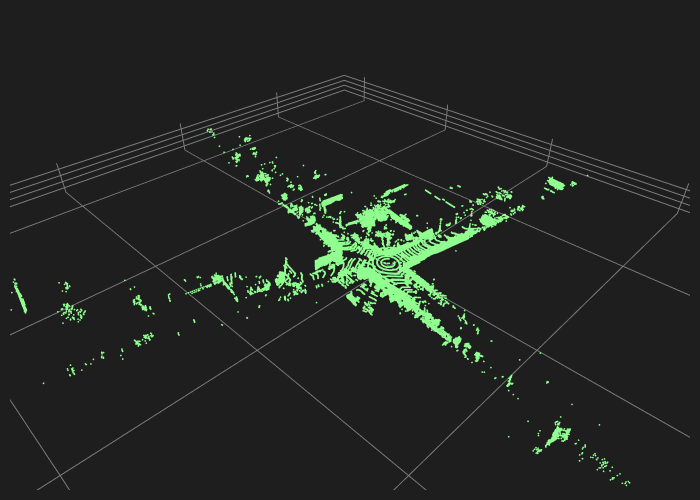

Several things worth noting when looking at the single scan below, taken when the Argo test car is turning at an intersection:

  • The location of the car (at the origin) is marked by concentric circles formed by the lowest beams.

  • The range is approximately 200m, so we can see fairly far down the cross streets.

  • Occlusion is significant: objects close to the car throw “occlusion shadows.”

  • Everything is in body coordinates, and the streets appear rotated because the car is actually turning.

#| caption: An actual 3D Velodyne LIDAR scan from an autonomous vehicle
#| label: fig:lidar_scan_real
real_scans = {0:driving.read_lidar_points('Figures6/lidar/PC_315967795019746000.ply')}
driving.visualize_cloud(real_scans[0], show_grid_lines=True)
_images/93d426270dbaeb4a4fc6d4120296710c1cec599d2d23e4ff1d616b6b862f4852.png

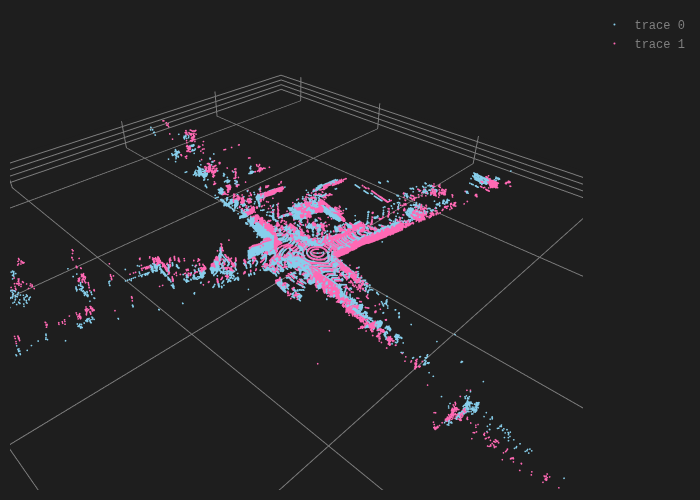

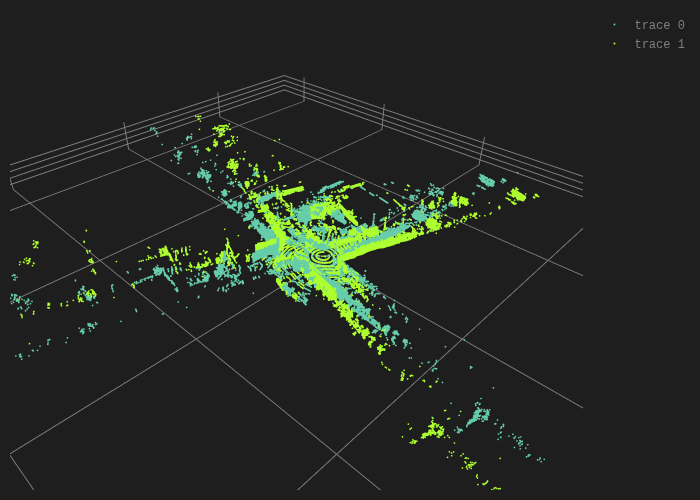

We can also learn some things from looking at two successive scans below. The scans are slightly rotated and translated from each other, and this will be exactly how we can infer the ego-motion of the car in the next section.

#| caption: Two successive LIDAR scans from an autonomous vehicle.
#| label: fig:lidar_scan_real_2
real_scans[1] = driving.read_lidar_points('Figures6/lidar/PC_315967795520065000.ply')
driving.visualize_clouds([real_scans[0],real_scans[1]], show_grid_lines=True)
_images/2203077e886d44d59d430a4e15e4332a951b1cc964bcdcce4e71fec3a4e03b13.png

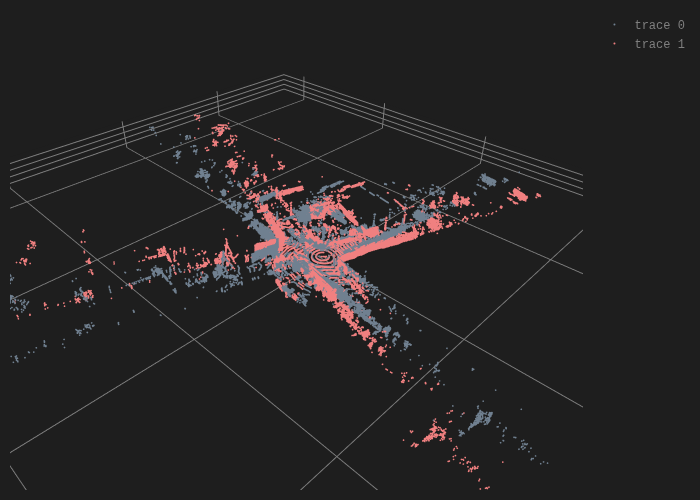

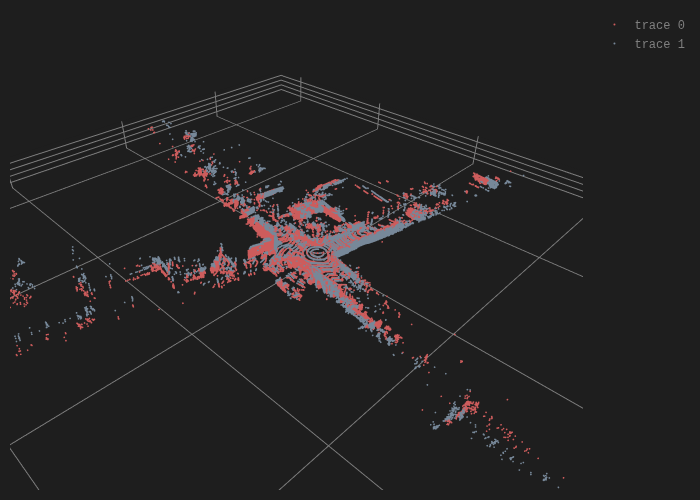

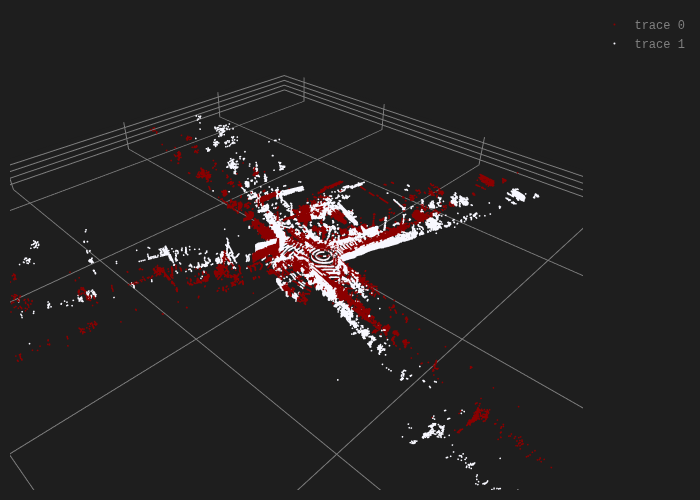

Finally, let us look at scans that are taken a bit further apart, in this case there are 8 scans that we skipped:

#| caption: Two LIDAR scans from an autonomous vehicle that are eight frames apart.
#| label: fig:lidar_scan_real_8
real_scans[9] = driving.read_lidar_points('Figures6/lidar/PC_315967795919523000.ply')
driving.visualize_clouds([real_scans[0],real_scans[9]], show_grid_lines=True)
_images/bb214cee90508e201c6e50742d746f9760d6d801081a1e7c3d299955deb3000f.png

By inspecting (you can do this interactively using the gtbook website) you can see that the car is still turning, but as the two scans are further apart the “mis-alginment” is more pronounced.

6.3.6. Creating 3D Maps#

Point clouds can be used to represent the 3D world.

If we know the exact pose at which a LIDAR scan was taken, we can transform the points in the scan into absolute coordinates, and create an extended point cloud map of the environment. In math, suppose we know that a scan was taken at \(T^w_b\), then we can transform all LIDAR points \(P^b\), which are given in body coordinates, to world coordinates:

\[ P^w = \phi(T^w_b, P^b) \]

where \(\phi\) the the action of \(SE(3)\) on points in \(\mathbb{R}^3\). Earlier in this chapter we saw this can be done by matrix multiplication, but GTSAM actually implements \(\phi\) directly as Pose3::transformFrom. This method can be applied to a single Point3 (just a \(3\times 1\) vector, really) or on many points simultaneously, by passing in a \(3\times N\) matrix:

scan_in_world = wTb3.transformFrom(real_scans[0])
print(scan_in_world.shape)
(3, 86651)

We will use this capability in the next section to produce large scale sparse point cloud maps of the environment around an autonomous vehicle.

6.3.7. GTSAM 101#

A deeper dive in the GTSAM concepts used above.

6.3.7.1. 2D and 3D Points#

In GTSAM Point2 and Point3 are simply functions that return 2D and 3D numpy vectors, respectively:

p = gtsam.Point2(3,4)
P = gtsam.Point3(5,6,7)
print(type(p), p)
print(type(P), P)
<class 'numpy.ndarray'> [3. 4.]
<class 'numpy.ndarray'> [5. 6. 7.]

6.3.7.2. 2D and 3D Rotations#

2D and 3D rotations are represented internally by \(2 \times 2\) matrices and \(3 \times 3\) matrices, respectively, but these are wrapped into the classes Rot2 and Rot3. We can print them, and get the rotation matrix via the matrix() method:

R1 = gtsam.Rot2(20 * math.pi / 180) # 20 degrees rotation
print(R1, R1.matrix())
theta: 0.349066
 [[ 0.93969262 -0.34202014]
 [ 0.34202014  0.93969262]]
R2 = gtsam.Rot3()
print(R2, R2.matrix())
R: [
	1, 0, 0;
	0, 1, 0;
	0, 0, 1
]
 [[1. 0. 0.]
 [0. 1. 0.]
 [0. 0. 1.]]

While there are various methods to create 3D rotation matrices (use help!), above we only use the named constructor Yaw , which is a rotation around the Z-axis. Below is an example, which you can compare with the 2D rotation example above…

R3 = gtsam.Rot3.Yaw(20 * math.pi / 180) # 20 degrees rotation around Z
print(R3, R3.matrix())
R: [
	0.939693, -0.34202, 0;
	0.34202, 0.939693, 0;
	0, 0, 1
]
 [[ 0.93969262 -0.34202014  0.        ]
 [ 0.34202014  0.93969262  0.        ]
 [ 0.          0.          1.        ]]

We will look at 3D rotations in much more detail in Chapter 7, when we look at drones.

6.3.7.3. Reading and Visualizing LIDAR clouds#

The utility functions read_lidar_points and visualize_clouds are not part of GTSAM, but are part of the gtbook library that accompanies this book. On the gtbook website you can find much more detailed documentation as well as the source code, but help is very comprehensive for those functions:

help(driving.read_lidar_points)
Help on function read_lidar_points in module gtbook.driving:

read_lidar_points(filename: str)
    Read 3D points in LIDAR scan stored as a binary_little_endian .ply file.

    Parameters:
        filename: of ply file

    Returns:
        A tuple (3,N) numpy array.
help(driving.visualize_clouds)
Help on function visualize_clouds in module gtbook.driving:

visualize_clouds(clouds: list, show_grid_lines: bool = False, cloud_colors=None, marker_size: int = 1, do_subsampling: bool = True)
    Visualizes cloud(s) in a iterative 3D plot.
        Adapted from code by 3630 TAs Binit Shah and Jerred Chen

    Due to browser limitations, rendering above 5 frames requires
    subsampling of the point clouds, which is done automatically.

    Example input of arg:
    clouds = [clouda, cloudb, cloudc]
    where each cloud is a numpy array of shape (3, num_points).
    cloud[0] are the x coordinates, cloud[1] is y, and cloud[2] is z.

    Args:
        clouds (list):          ordered series of point clouds
        show_grid_lines (bool): plots gridlines
        cloud_colors (list):    colors for each cloud in the visualization
        marker_size (int):      size of each marker
        do_subsampling (bool):  whether or not subsampling occurs

While the visualization code is statically rendered in the book, when you open the Colab things should be rendered as interactive plotly scatter plots. Try it!
