5.3. Robot Vision#

A camera is a super-sensor.

Splash image with steampunk robot sporting a stereo camera

In this section, we introduce cameras, which are among the most powerful sensors available to robots. We focus mainly on the geometric aspects of image formation, namely the relationships between 3D objects in the world and their 2D camera images. We will describe how to estimate the relevant parameters of the imaging process (camera calibration), and how two cameras can be used to estimate the 3D structure of the environment using two 2D images.

5.3.1. Cameras#

The basic ideas behind cameras have been around for centuries.

Everyone knows what a camera is these days, and you probably have between 1 and 5 on your phone, depending on what model you have.

Historically, a Camera Obscura, literally “dark room”, showed people that focused upside-down images can be formed on a surface, provided the light rays coming from outside the room were constricted to a small “pinhole”. If you have never experienced this in real-life, it is a worthwhile experience to see this with your own eyes. One of the surprising but obvious properties of a camera obscura is that the images move: it really is video obscura.

The question then is how to capture these fleeting images. Da Vinci wrote extensively about using the camera obscura for drawing, and several 17th century painters may have used it in their painting process, the most famous of them being Johannes Vermeer. The invention of photography (painting with light!) is usually credited to Niépce, who used a light-sensitive material to capture the light around 1825. However, it was his partner Daguerre who introduced photography to the world on a large scale via his Daguerreotype process, released into the public domain in 1839.

Since the 1990s, digital cameras have replaced cameras based on chemical emulsions, using CCDs (charged-coupled devices) or CMOS sensors as the underlying technology. Both sensor types capture photons in an array of picture elements or pixels. We will not discuss in detail how these devices work, but in essence both sensor types count how many photons fall onto each pixel’s area over a given time period. Below we discuss the more practical matter of the format in which images come to us, and how they can be used for robot vision.

5.3.2. Cameras for Robot Vision#

A camera is two sensors in one.

Cameras are amazing devices, and actually pack two sensors in one. First, a camera accurately measures the direction to points in space. Second, the 2D images formed on the sensor contain photometric information about the scene. This information can be analyzed by computer vision algorithms to recognize objects and analyze the scene in front of the robot. In this section we focus on the basics of image formation, however, and leave algorithms for Section 5.4.

A pinhole by itself is rather amazing, as it renders the entire scene in front entirely in focus. However, it has a large drawback, in that it only lets in a tiny amount of light. The solution is to use a lens, which collects light over a larger diameter and focuses the light onto the image sensor. The upshot is that we can collect a lot more light (photons) in the same amount of time. The downside is that only part of the scene can be in focus at a given time - a phenomenon that leads to the “depth of field” of a camera: the (possibly narrow) area between where objects are too close or too far to be in focus.

The most important properties associated with a digital camera are its resolution, typically specified as \(W \times H\) in pixels; its focal length, which, as we will see below, can be measured either in meters or pixels; and its field of view (FOV), typically specified in degrees (horizontal, vertical, or diagonal). The resolution is a property of the sensor, whereas focal length and field of view depend on the lens. We will investigate the relationships between these quantities below, where we talk about the camera imaging geometry.

In essence, we get access to images as multi-dimensional arrays. Expensive CCD cameras have three sensors, one per color channel (Red, Green, and Blue), and hence their raw output can be represented as three arrays of numbers that represent light levels in a specific frequency band, roughly corresponding to the same frequency bands that receptors in our eye are sensitive to. However, most cameras now have a single CMOS sensor with a color filter on top (called a Bayer pattern), and specialized algorithms that hallucinate three color channels. Actually, most cameras do a great deal more processing to improve the color and lighting; this sometimes gets in the way of algorithms that rely on measuring light exactly, but those are rather rare. In most cases, we are content to simply think of a (color) image as a \(H \times W \times 3\) array of numbers, where \(H\) is the height of the image, and \(W\) the width.

As an example, below we show an image on the left, taken by the differential drive robot on the right:

image_name = "LL_color_1201754063.387872.jpeg"
ROW([f'<img src="{FIG5}/{image_name}?raw=1" alt="Outdoor, beaten down path">',
     f'<img src="{FIG5}/lagr-robot.jpg?raw=1" alt="LAGR robot" height="359">'])
Outdoor, beaten down path LAGR robot

A python library, the Python Imaging Library or PIL provides some basic capabilities to deal with digital images. We can load images using the PIL.Image class, examine its dimensions, and create a numpy array view (you can also use display in a notebook to show it):

image = diffdrive.read_image(image_name) # locally:
print(f"resolution = {image.width}x{image.height}")
image_data = np.asarray(image)
print(f"image_data.shape = {image_data.shape}")
resolution = 512x384
image_data.shape = (384, 512, 3)
[76 54 56]

We see that the image width and height are \(512\) and \(384\), respectively. But when we access the array with numpy, the first (slowest changing) dimension is the height, followed by the width and then the color dimension. Hence, the numpy array has to be indexed using the \((\text{row},\text{column})\) convention, after which you get the RGB value in the array, as shown in the last line of code above.

It is customary to use variables \((i,j)\) or \((r,c)\) to index pixels, where the latter is slightly preferred as it emphasizes the row and column semantics of these integer coordinates.

5.3.3. Camera Imaging Geometry#

Points in the 3D environment project to points in a 2D image.

In order to use a camera to infer the properties of the robot’s 3D environment, we need to fully under stand the geometry of image formation. We already did so at a superficial level, but the geometry involved needs more detail: exactly what light falls into what pixel? The simplest model for geometric image formation is the pinhole camera model. Imagine a three-dimensional, orthogonal coordinate frame centered at center of the lens. Computer vision folks use a very specific camera convention which will make the math easy:

  • the X-axis points to the right;

  • the Y-axis points down; and

  • the Z-axis points into the scene.

When we express 3D points in the scene according to this convention, in a coordinate frame that is attached the the cameras, we speak of specifying an object in camera coordinates. For example, a 2 meter tall person, standing 5 meters away, and 3 meters to the left, would have be in between these two 3D coordinates:

feet = gtsam.Point3(-3,1.7,5) # point at the feet of the person, 5 meters in front of camera, 3 meters to the left
head = gtsam.Point3(-3,-0.3,5) # point at the top of the head (note, Y = *minus* 2 meters)

Note that we specify the location of the person’s feet in camera coordinates, and if we are holding the camera level at a height of 1.7 meters, the feet will be 1.7 meters below the pinhole position.

Thinking back to the camera obscura example, the pinhole camera model specifies that a 3D point \((X,Y,Z)\) in camera coordinates will be projected onto an image plane behind the camera:

\[ X_I = - F \frac{X}{Z} ~~~~ Y_I = - F \frac{Y}{Z} ~~~~ Z_I = -F \]

Here, \(F\) denotes the focal length measured in meters, which is defined as the distance from the image plane to the pinhole, i.e., the center of the lens. The following figure shows the geometry:

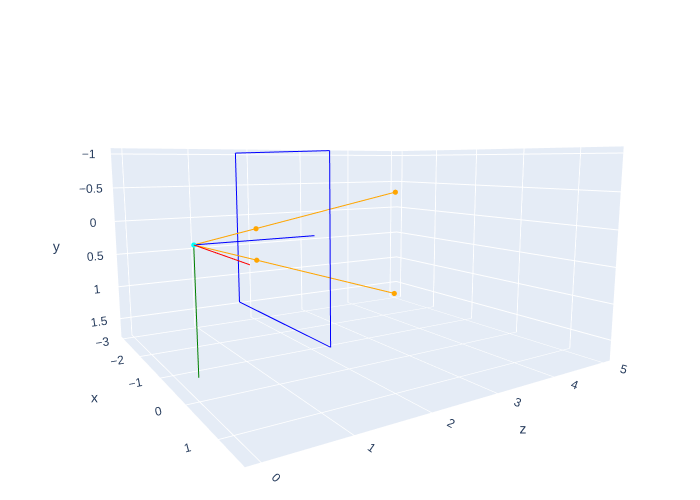

#| caption: The geometry of the pinhole camera model.
#| label: fig:pinhole_geometry
F = 1 # meter
from gtbook.diffdrive import axes, plane, ray, show_3d
show_3d(go.Figure(data = plane(-F) + [ray(feet, -F), ray(head, -F)] + axes()))

However, it is not easy to debug algorithms with a true upside down pinhole image. Instead, we can define a virtual image plane at a distance \(F\) in front of the pinhole, which is non-physical, but has the advantage that the image now appears right-side up. We simply have to reflect the projected coordinates:

\[ X_V = F \frac{X}{Z} ~~~~ Y_V = F \frac{Y}{Z} ~~~~ Z_V = F \]

The virtual image geometry is shown below:

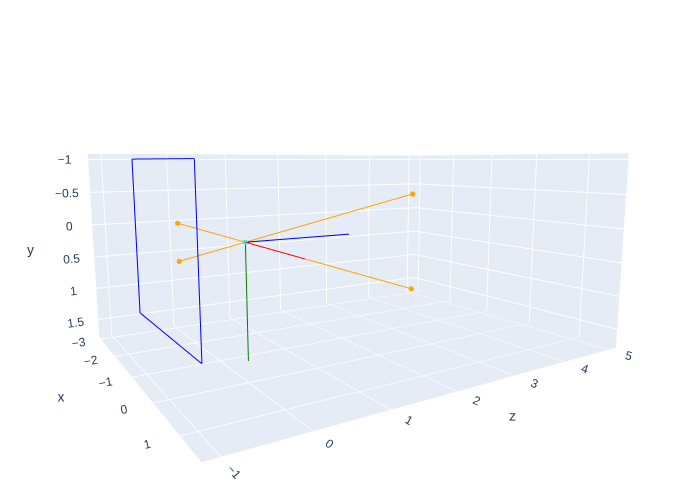

#| caption: The virtual image is *in front* of the camera.
#| label: fig:virtual_image
show_3d(go.Figure(data = plane(F) + [ray(feet, F), ray(head, F)] + axes()))

The above has the disadvantage that we still have to take into account the focal length \(F\) when doing the projection. Dividing by the focal length yields the fundamental pinhole projection equation:

\[ x = \frac{X}{Z} ~~~~ y = \frac{Y}{Z} \]

The dimensionless \(x\) and \(y\) coordinates are called the intrinsic camera coordinates, and can be thought of as the image of the scene in a virtual image plane situated at a focal length of 1.0. Note that the image origin at \((x,y)=(0,0)\) is the location where the optical axis (the blue Z-axis above) pierces the image plane. This point is commonly refered to as the principal point. The intrinsic coordinates are in essence measuring a direction in space, but parameterized by a location in the virtual image plane rather than two angles.

5.3.4. Camera Calibration#

From intrinsic to sensor coordinates.

Intrinsic coordinates are dimensionless, but what pixels in an image do they correspond to? Also, when we project real-valued 3D coordinates in an image, we get real-valued intrinsic coordinates \((x,y)\). How does that relate to integer pixel coordinates? To translate from intrinsic coordinates to pixel coordinates, we introduce real-valued sensor coordinates \((u,v)\), with the following conventions (try to draw this out for a \(4\times3\) image!):

  • the top-left of the sensor corresponds to \((u, v)=(0.0, 0.0)\);

  • the bottom-right of the sensor corresponds to \((u, v)=(W, H)\).

Some things to note:

  • the vertical \(v\)-axis points down;

  • the units are in pixels (fractional pixels, if being precise);

  • we swapped the convention from \((r,c)\Leftrightarrow(\text{row},\text{column})\) to \((u,v)\Leftrightarrow(\text{horizontal}, \text{vertical})\);

  • the middle of pixel \((r, c)=(0, 0)\) has sensor coordinates \((u, v)=(0.5, 0.5)\);

  • the middle of pixel \((r, c)=(H-1, W-1)\) has sensor coordinates \((u, v)=(W-0.5, H-0.5)\).

The simplest camera calibration model is just a linear mapping, which is most appropriate for lenses with a small field of view. For this we need four parameters \(\alpha\), \(\beta\), \(u_0\), and \(v_0\), to convert from intrinsic coordinates \((x,y)\) to sensor coordinates \((u,v)\):

\[\begin{split} \begin{aligned} u &= u_0 + \alpha x \\ v &= v_0 + \beta y \end{aligned} \end{split}\]

As an example, consider the FireFly S machine vision camera, which has the following specifications:

  • sensor: Sony IMX297 (CMOS)

  • resolution: 728 x 544

  • pixel size: 6.9 \(\mu m\) (H) x 6.9 \(\mu m\) (V)

  • sensor size: 6.3mm diagonally (sanity-check this!)

We typically expect the image center, corresponding to \((x,y)=(0.0,0.0)\), to be close to \((u_0,v_0)=(W/2,H/2)\). For the sensor above this would be \((u_0,v_0)=(364.0, 272.0)\). To compute \(\alpha\) and \(\beta\) we have to take into account the lens focal length \(F\). Since \(u\) and \(v\) are expressed in pixels, and \(x\) and \(y\) are dimensionless, it is clear that \(\alpha\) and \(\beta\) must also be expressed in pixels. They can be computed as

  • \(\alpha = F k = 8mm/6.9\mu m \approx 1160px\)

  • \(\beta = F l = 8mm/6.9\mu m \approx 1160px\)


\[k = 1px/6.9\mu~~~~~\mathrm{and}~~~~l = 1px/6.9\mu\]

are sensor-specific constants that indicated the number of pixels per unit of length.

Whenever \(k=l\), the sensor has square pixels, and we can just use one proportionality constant, \(f=\alpha=\beta\). In this case, \(f\) again denotes the focal length, but this time, expressed in pixels. This is a slight abuse of terminology, as \(f\) is a property of both the lens and the image sensor plane, but it is in widespread and we will adopt it here as well.

5.3.5. Pinhole Projection Equations#

From 3D to pixel coordinates.

Putting all of the above together, we finally have the fundamental pinhole projection equations, projecting a point \(P\) in 3D camera coordinates \(P=(X,Y,Z)\), to its 2D image projection \(p=(u,v)\) in sensor coordinates:

\[ u = u_0 + f \frac{X}{Z} ~~~~ v = v_0 + f \frac{Y}{Z}. \]

To obtain integer pixel coordinates \((r,c)\), we simply need to use the floor function, truncating the fractional pixel sensor coordinates to a location in the image array. Note that in doing so we also flip horizontal and vertical:

\[ (r,c) = (\lfloor v \rfloor, \lfloor u \rfloor) \]

We can also go the other way, calibrating the sensor coordinates \((u,v)\) to the dimensionless intrinsic coordinates \((x,y)\):

\[\begin{split} \begin{aligned} x &= (u-u_0)/f \\ y &= (v-v_0)/f \end{aligned} \end{split}\]

5.3.6. Camera Calibration in GTSAM#

Everything above and more.

In GTSAM you have access to several calibration models, with the simple one above corresponding to gtsam.Cal3_S2:

cal_8mm_FireFlyS = gtsam.Cal3_S2(fx=1160, fy=1160, s=0, u0=364, v0=272)

The arguments fx and fy above correspond to \(\alpha\) and \(\beta\), and for now you can ignore the extra s argument, denoting skew which is almost always zero for modern sensors. We can then convert from integer pixel coordinates to intrinsic coordinates:

def calibration_demo(cal:gtsam.Cal3_S2, row:int, col:int):
    """Convert from integer pixel coordinates to sensor and then intrinsic coordinates."""
    assert isinstance(row,int) and isinstance(col,int)
    u, v = 0.5+col, 0.5+row
    x, y = cal.calibrate([u,v])
    print(f"image[{row},{col}] -> (u,v)=({round(u,2)}px,{round(v,2)}px) -> (x,y)=({round(x,3)},{round(y,3)}) ")

calibration_demo(cal_8mm_FireFlyS, row=0, col=0)
calibration_demo(cal_8mm_FireFlyS, row=272, col=364)
calibration_demo(cal_8mm_FireFlyS, row=543, col=727)
image[0,0] -> (u,v)=(0.5px,0.5px) -> (x,y)=(-0.313,-0.234)
image[272,364] -> (u,v)=(364.5px,272.5px) -> (x,y)=(0.0,0.0)
image[543,727] -> (u,v)=(727.5px,543.5px) -> (x,y)=(0.313,0.234)

Note that although the intrinsic coordinates are the dimensionless, you can interpret them as fractions of the focal length. Also, the above was a “calibration” example where we go from pixel coordinates to intrinsic coordinates. The calibration objects in GTSAM also provide an uncalibrate method which goes the other way:

u,v = cal_8mm_FireFlyS.uncalibrate([0,0])
print(f"(x,y)=(0,0) -> (u,v)=({round(u,2)}px,{round(v,2)}px)")
(x,y)=(0,0) -> (u,v)=(364.0px,272.0px)

5.3.7. Camera Field of View#

The last concept we need to define the camera imaging geometry is the camera’s field of view or FOV. Because the left-most ray we can see has \(u=0\), it corresponds to \(x=-u_0/f\approx-W/2f\). The horizontal FOV can then be calculated by

\[\mathrm{HFOV} = 2 \arctan(W/2f)~~\mathrm{rad} = 360 \arctan(W/2f) / \pi~~\mathrm{degrees}\]

For the sensor-lens combination above we get a relatively narrow field of view of about 35 degrees:

f = 1160
hfov = 360 * math.atan(728/(2*f)) / math.pi
print(f"HFOV for f={f} is {hfov:.2f} degrees")
HFOV for f=1160 is 34.84 degrees

Field of view increases with decreasing focal length, e.g., a lens of 4mm will give us a bit less than double that HFOV, of around 64 degrees:

f_wide = 4e-3/6.9e-6
hfov_wide = 360 * math.atan(728/(2*f_wide)) / math.pi
print(f"HFOV for f={f_wide:.1f} is {hfov_wide:.2f} degrees")
HFOV for f=579.7 is 64.25 degrees

We can also ask the opposite question: what lens focal length should we choose to get a certain filed of view. For example, for a diagonal field of view we have

\[\mathrm{DFOV} = 360 \arctan(\sqrt{W^2+H^2}/2f) / \pi~~\mathrm{degrees}\]

and hence

\[f = \frac{\sqrt{W^2+H^2}}{2 \tan(\mathrm{DFOV} \pi/360)}\]
f45 = math.sqrt(728**2+544**2)/2/math.tan(math.pi/4)
F45 = f45*6.9e-3
print(f"f45 = {np.round(f45)} pixels, F45 = {np.round(F45,1)} mm")
f45 = 454.0 pixels, F45 = 3.1 mm

5.3.8. Stereo Vision#

Given two cameras, we can calculate depth.

When using two cameras, we can triangulate a feature that is seen in both cameras to calculate its location in space. Given a projection \(p=(u,v)\) of a point \(P=(X,Y,Z)\) in a single camera we can only determine the ray on which the point \(P\) must lie. However, if we see two projections of the same feature in two cameras, placed side by side, we can triangulate the location of \(P\). In particular, let us name the cameras “Left” and “Right”, abbreviated as “L” and “R”, and let the two projections be \(p_L=(u_L,v_L)\) and \(p_R=(u_R,v_R)\). How could we recover the coordinates \((X,Y,Z)\) in, say, the left camera coordinate frame?

We can easily work out the answer if the cameras have the same calibration and the camera pair is in a “stereo” configuration. The latter means that the cameras have exactly the same orientation with respect to the world, and the right camera is displaced only horizontally with respect to the left camera. We call the displacement the stereo baseline \(B\). In that case we have

\[\begin{split} \begin{aligned} u_L &= u_0 + f \frac{X}{Z}, ~~~~~ &v_L = v_0 + f \frac{Y}{Z} \\ \\ u_R &= u_0 + f \frac{X-B}{Z}, ~~~~~ &v_R = v_0 + f \frac{Y}{Z} \end{aligned} \end{split}\]

Two interesting things to note: (a) \(u_L\) and \(u_R\) differ only because the \(X\) coordinate of the point \(P\), measured in the right camera, is \(B\) less than its value in the left camera. and (b) \(v_L\) and \(v_R\) have the same value: corresponding points in a stereo pair lie on the same scanline in the images. We can use the first fact to calculate the unknown depth \(Z\), by defining the disparity \(d\) as the difference of \(u_L\) and \(u_R\),

\[ d \doteq u_L - u_R = f \frac{X}{Z} - f \frac{X-B}{Z}, \]

and then performing some algebraic manipulation to obtain the fundamental stereo equation:

\[ Z = B \frac{f}{d}. \]

The fraction \(f/d\) is dimensionless, as both disparity \(d\) and focal length \(f\) are expressed in pixels, and hence the resulting depth \(Z\) is expressed in the units of the baseline \(B\). Using this together with the projection equations above, we can now completely reconstruct the location of the point \(P\) in (left) camera coordinates:

\[\begin{split} \begin{bmatrix}X\\Y\\Z\end{bmatrix} = \begin{bmatrix}Z(u_L-u_0)/f\\Z(v_L-v_0)/f\\B f/d\end{bmatrix} = B \frac{f}{d} \begin{bmatrix}(u_L-u_0)/f\\(v_L-v_0)/f\\1\end{bmatrix} \end{split}\]

Stereo cameras are used very often on robotics platforms because of this ability to reconstruct the world in 3D, at least in principle. This is akin to our own (human) ability to perceive depth by virtue of having two eyes, a feature we have in common with many animals - primarily predators, who need accurate depth vision to hunt prey. In practice, using a stereo camera is not as easy, as it has to be carefully calibrated and finding correspondences between left and right cameras is not always straightforward. However, the latter has been alleviated quite a bit by recent advances in neural networks, which we will discuss below.
